Overview

This guide walks you through how to:
  • Create a custom truss layout
  • Define FEA nodes and elements
  • Assign member types
  • Create a custom cross-section
  • Link that cross-section into the truss model
Watch through our example that uses the AU calculators, note the workflow is the identical for US calculators, since both share similar functionality.

​
Step 1 — Start a Truss Analysis Wizard

  1. Open the Truss Analysis Wizard.
  2. You’ll see a list of predefined truss types.
If your truss does not match a standard pattern, you can switch to a fully customizable layout.

​
Step 2 — Switch to Custom Truss

  1. In the Truss Type dropdown, scroll down and select Custom Truss.
  2. A default placeholder truss will appear.
  3. Scroll down to the Custom Truss Definition section.
This is where you manually define:
  • FEA nodes (coordinates)
  • Elements connecting those nodes
  • Member types assigned to each element (these members correspond to the member selection, this can be customized as well. We will go through this later in the article.)

​
Step 3 — Add Custom Nodes

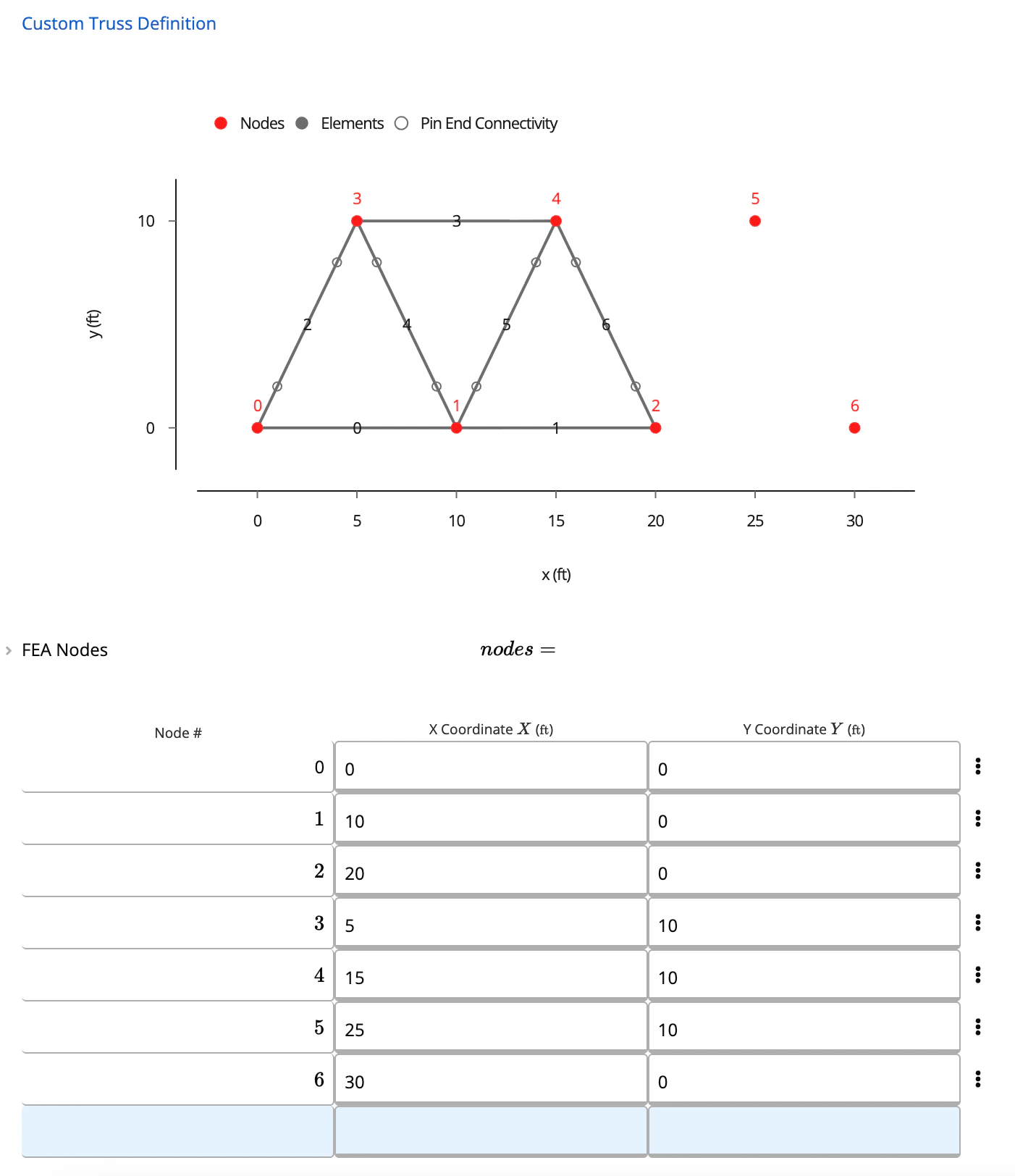

For example, in the FEA Nodes table:
  1. Add a new node at (25, 10)
  2. Add another node at (30, 0)
You can continue adding or removing as many nodes as your geometry requires. Your design can get as simple or complex as you need it to be! Screenshot 2025-11-19 at 11.39.02 AM.png Screenshot 2025-11-19 at 11.52.54 AM.png

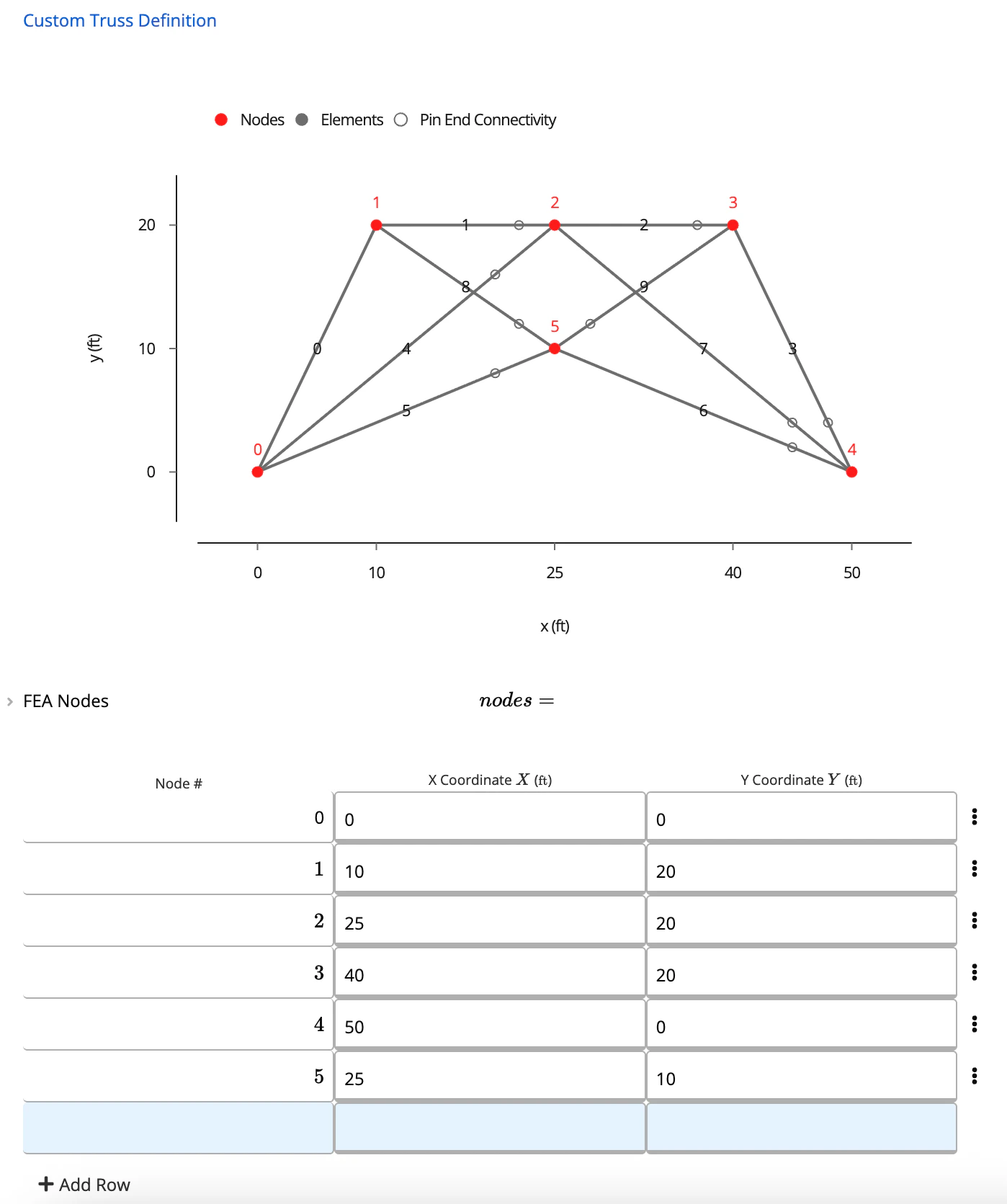

Note: Calcs.com currently does not auto detect members crossing other members or nodes. In the above example, if we have a member spanning from nodes 1 to 3, please input this as two members, from node 1 to 2 and 2 to 3

​
Step 4 — Define the Elements

Next, connect the nodes to form the truss members. Example from the video:
  • Connect node 4 → 5
  • Connect node 2 → 5
  • Connect node 2 → 6
  • Connect node 5 → 6
For each element, assign a Member Type (e.g., 1, 2, 3).These correspond to materials you’ll assign later. It’s important to note that your members should be
Member types typically represent different groups such as the top chord, bottom chord, and web members. Assign them clearly to make member selection easier later.
You can also set fixity here (e.g., pinned or fixed ends).

​
Step 5 — Choose the Material Type for Your Members

Under Member Selection, you can choose:
  • Hot Rolled Steel
  • Cold-Formed Steel
  • Timber
  • Custom Linked (for custom shapes)
If you’re using standard steel or timber, the Member Selector will display all available database shapes. However, if your truss uses a custom bar, pipe, or proprietary shape, keep reading to learn how to model this.

​
Step 6 — Create a Custom Cross-Section

Since no custom cross-sections exist yet, create one:
  1. Add a new calculator.
  2. Choose Custom Cross-Section Property → Generic Cross-Section.
  3. Define your dimensions.

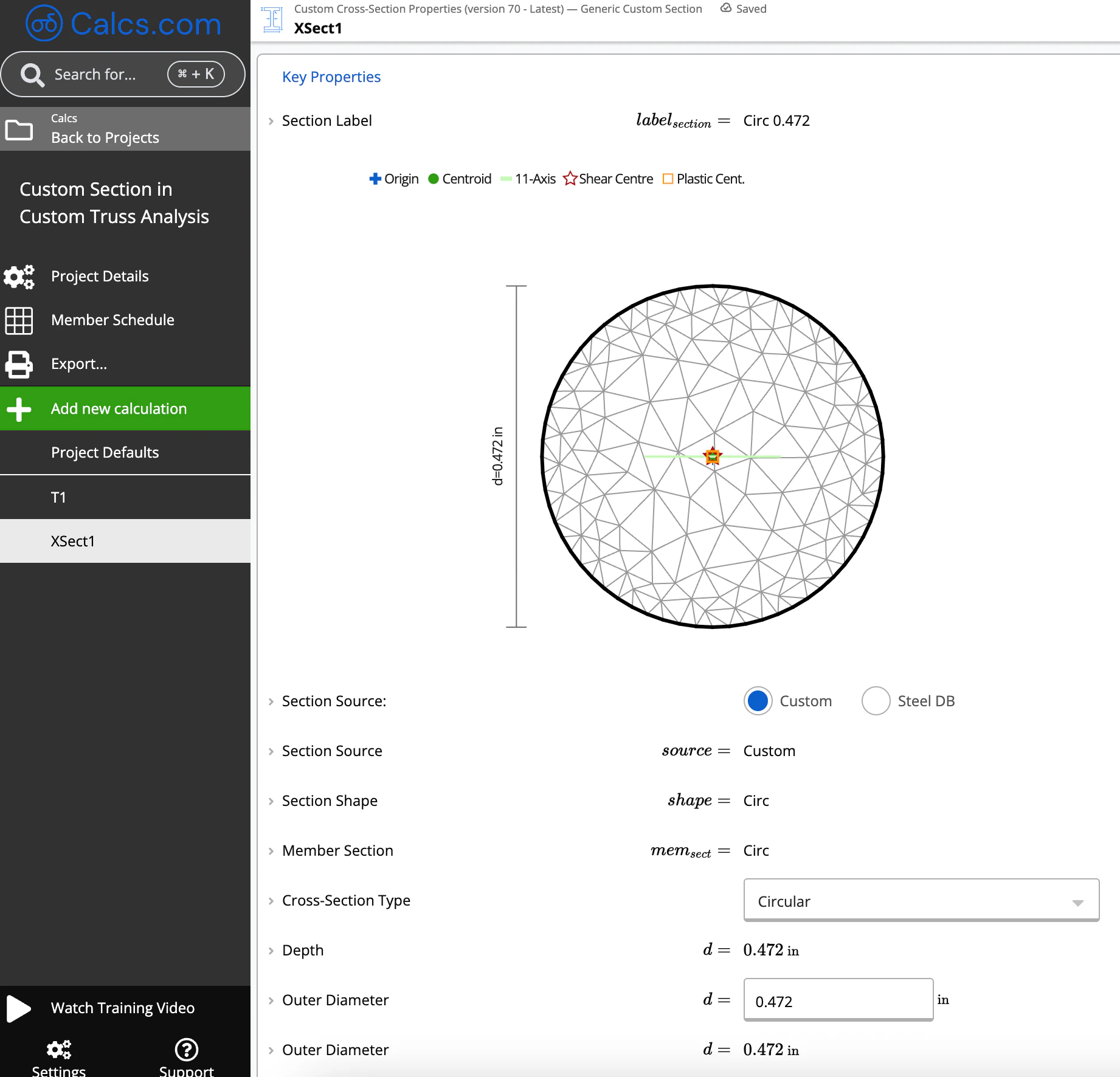

For example, if we had **N12 bars **for our web members, enter a circular section with 12 mm diameter. Once saved, this custom section becomes available for linking. Screenshot 2025-11-19 at 11.43.22 AM.png

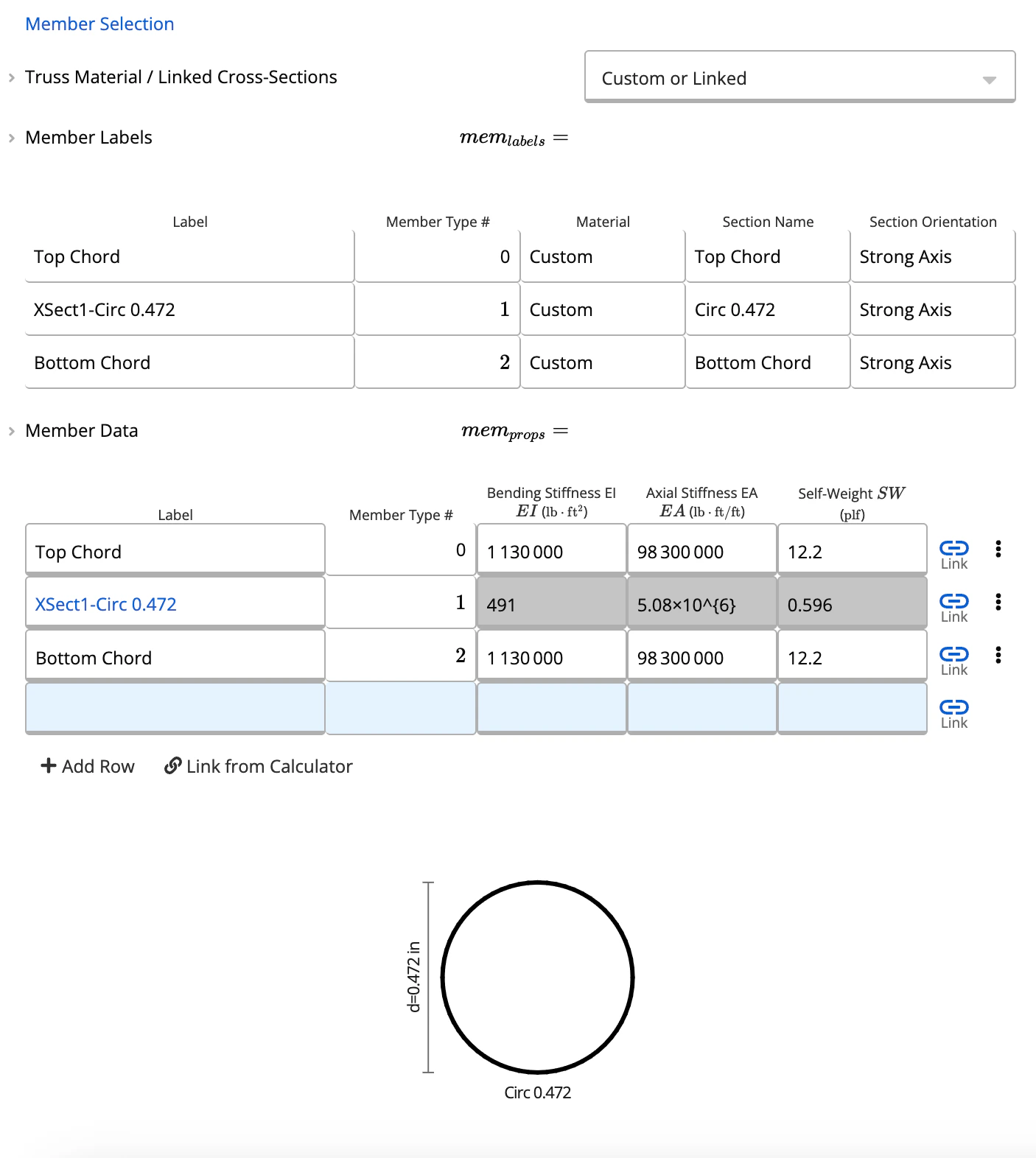

Return to your Custom Truss Analysis. Under Member Data:
  1. Find the member type you want to assign the custom section to (e.g., Member Type 1).
  2. Change the section to your newly created custom cross-section.
The custom cross section calculator will now automatically calculate:
  • Axial stiffness
  • Bending stiffness
  • Self-weight
Anywhere that Member Type 1 appears in your truss geometry. Screenshot 2025-11-19 at 11.43.48 AM.png

​
Final Notes

  • All members assigned the same type will now use your custom cross section.
  • You can repeat this process for as many section types as needed.
  • At any time, you can edit nodes, add new members, or adjust your custom section
Note that the truss analysis and custom cross section calculator do not currently design the strength of the section.
